How to Install a Toto Washlet

Before You Start

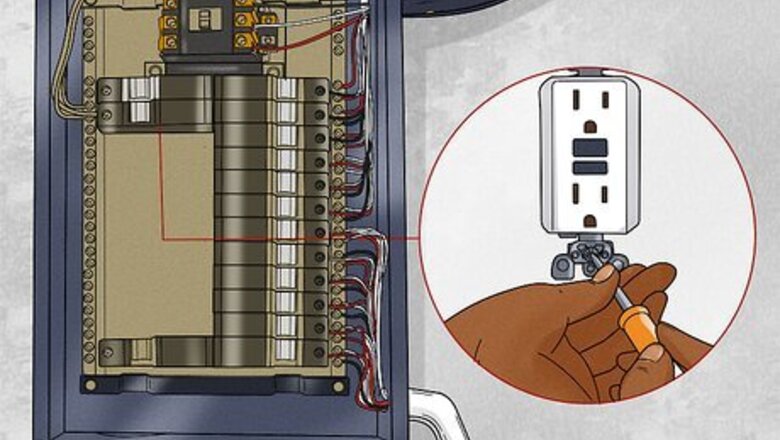

Install an additional power outlet first. Per national and international electric codes, your power outlet must be connected to a GFCI/RCD breaker to minimize injury caused by electric shock. If your toilet has a GFCI outlet conveniently nearby, you can chain another outlet to it; just attach the additional outlet to the "load" contacts on the breaker. If your toilet does not have a GFCI or RCD nearby, you should contact an electrician to have one installed. This outlet needs to be positioned at the same height as other ground-level outlets so that the 1-meter cable can plug into the wall.

Consider replacing your toilet with a Toto Washlet+ compatible toilet. If you use a Toto Washlet with a Toto toilet, you may be able to use additional controls, including flushing the toilet from the remote.

Connecting the Junction Valve

Turn off and disconnect the toilet from the water supply. Because you will be installing a bidet, you will need to turn off the water supply to the toilet using the valve feeding from the wall. After doing so, you will need to empty the toilet tank by flushing the toilet to minimize backflow. Then, with a bucket to catch the water, remove the tubing from the water inlet to disconnect the water supply.

Install the junction valve. To do so, start by inserting the rubber fittings and washers into the valve to prevent leakage. After all the fittings are in, screw the nuts of the junction valve to the underside of the toilet or to the water supply. The nuts should be snug, but not too tight.

Attaching the Washlet

Install the base plate. Start by assembling the paper template included with the Washlet to provide a guide to where you need to place your marks. If you have a toilet with a curved back, move the inserts to the back holes before mounting.

Verify the size of the bowl. Measure the distance from the holes to the edge of the toilet. If the distance is 47 centimetres (19 in), then you have an elongated toilet. If the distance is 42 centimetres (17 in), then you have a round toilet.

Position the base plate. If your toilet is elongated, then line the bolts up with the position "elongated" on the paper template. Otherwise, line the bolts up with the position "round" on the paper template.

Temporarily tighten the bolt. Insert the rubber bushings into the toilet's mounting holes, then tighten the bolts to secure it in place. Do not tighten the bolt fully as you will need to position the Washlet.

Attach the Washlet. At this point, you do not need the paper template any more, and you should remove it. Pull it out from underneath the base plate. Then slide the Washlet in until you hear an audible click.

Slide the Washlet to position it over the toilet bowl. The seat needs to be as perfectly aligned with the toilet bowl as possible, without it hanging over the edge. After it is correctly positioned, use the release button on the side to remove the Washlet.

Fully tighten all the bolts. Screw the base plate in until it is flush with the toilet. Then, slide the Washlet onto the baseplate until you hear an audible click. If installed correctly, the Washlet should not easily move from use. The Toto Washlet may still wiggle slightly because of the attachment mechanism, which is completely normal.

Connecting the Washlet

Screw the Washlet hose to the right of the Washlet. Use a wrench to turn the hex lock into the water inlet on the Washlet. Do not overtighten.

Connect the plug end of the hose into the junction valve. First check that the ring of the water supply coupler is correctly positioned on the edge of the hose. Then plug the Washlet pipe into the coupler until you hear an audible click.

Verify the length of the connection hose. The hose should be long enough that you can remove and reattach the Washlet while it is still connected. This will be necessary for periodic cleaning and maintenance.

Check for leaks. Temporarily turn the water supply back on. If there are leaks, then you may have a loose connection somewhere. Turn the water supply off, then remove and reconnect the water hose and check again.

Installing the Remote

Insert the AA batteries. This will allow you to use the remote. These batteries will need to be replaced when they run out.

Attach the remote control hanger to the wall. Common positions for such a remote include to the side or on the same wall as the toilet.

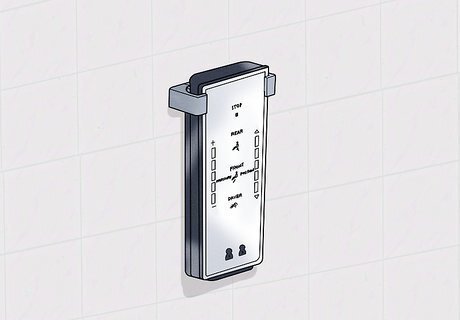

Insert the remote control into the wall hanger. This is where your remote will be stored when you are not actively using the toilet.

Testing the Washlet

Check for leaks. Ensure that all the fittings are securely attached then turn the water back on to make sure that there are no leaks. If there are leaks, you may have a loose connection somewhere. Reinstall the fittings until the leakage stops.

Plug the Washlet into power. Make sure that you use the appropriate rating for your outlet. A North American or Japanese Washlet can only be used with 100-120V 50-60 Hz AC, depending on where you bought the Washlet and the frequency used in your country. A European or Asian Washlet can only be used with 220V 50 Hz AC power.

Approach the Washlet. When you do so, if equipped, the toilet seat should rise. When you leave, the Washlet lid should close, and, if installed, the toilet should automatically flush.

Verify that the wash functions work properly. Heating the water takes some time. After the water is heated, push on the toilet seat or cover the seat sensor. Use the remote to make sure that all the equipped functions are working, including the flush, the air dryer, the sterilizing mist, and the bidet itself. Use a cup to catch the bidet spray.
